TKLS: SPECIFICATIONS
SHORT DESCRIPTION

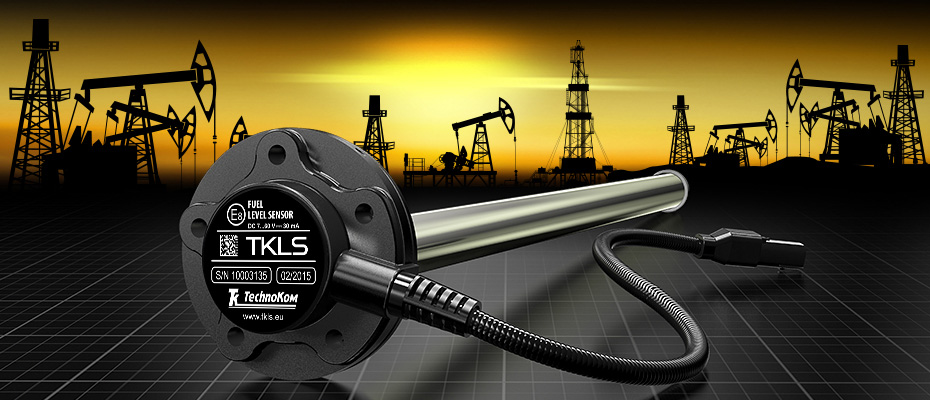

The TKLS fuel level sensor is an electronic gauge of a capacitance type intended to measure fuel level in a vehicle tank (or other volume), convert the readings into a digital form or a frequency signal and transmit them to an external device. Data in a digital form is transferred via RS-485 bus in a user-defined protocol.
In addition, the sensor allows measuring and transmission of a set of parameters such as an ambient temperature, an angle of fuel tank inclination in relation to a horizontal plane, diagnostics codes and etc.
The built-in Bluetooth Low Energy module makes possible wireless configuration and diagnostics of TKLS fuel level sensor using a mobile device running iOS or Android.
In addition, the sensor allows measuring and transmission of a set of parameters such as an ambient temperature, an angle of fuel tank inclination in relation to a horizontal plane, diagnostics codes and etc.
The built-in Bluetooth Low Energy module makes possible wireless configuration and diagnostics of TKLS fuel level sensor using a mobile device running iOS or Android.
TECHNICAL SPECIFICATIONS
| PARAMETERS | VALUE |
|---|---|
| Output interface | 1x RS-485 (TIA/EIA-485-A) 1x frequency output |
| RS-485 interface protocols | AGHIP / LLS / ModBus |
| Bluetooth Smart / Bluetooth Low Energy (BLE) | Yes |
| Internal 3-axis accelerometer / Inclinometer | Yes |
| Automatic volume calibration | Yes |
| Self-diagnostics | Yes |
| Error code transmission | Yes |
| Settings protection by password | Yes |
| Wireless connection to on-board controller via Bluetooth | Yes1 |
| Remote configuration via Bluetooth | Yes |
| Remote configuration via RS-485 | Yes |
| Remote firmware update | Yes |
| Logging | Yes |
| Temperature measuring | Yes |
| Digital inputs number, pc | 1 |
| FREQUENCY OUTPUT CHARACTERISTICS | |
| Output frequency range, Hz | 100…3000 |
| Output type | Open collector |
| Maximum load current, mA | 200 |
| MEASURING CHARACTERISTICS | |
| Operational liquids | Diesel fuel / gasoline / oil |
| Fuel level measuring accuracy, % | 1 |
| Resolution, bit | 12 |
| Temperature measuring range, °С | -40…+85 |
| Temperature measuring accuracy, °С | ±1 |
| OPERATIONAL CONDITIONS | |
| Operating voltage, V | 7…60 |
| Power consumption at 12 VDC, mA | 30 |
| Temperature range, °С | -40…+85 |
| Protection class | IP69K |
| Probe length, mm | 750 / 1000 / 1500 / 2000 |
| Mounting type | SAE 5 |
| Average life time, years | 10 |
1 Only for on-board controllers AutoGRAPH with built-in Bluetooth Low Energy module
SCOPE OF SUPPLY
| № | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | TKLS fuel level sensor | 1 pc. |
| 2 | Plastic cover | 1 pc. |
| 3 | Signal cable in corrugated pipe | 7,5 m |
| 4 | Mounting kit | 1 set |
| 5 | Registration certificate | 1 pc. |
| 6 | Warranty certificate | 1 pc. |
MOUNTING KIT
| № | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | Seal gasket | 1 pc. |
| 2 | Self-tapping screws with mounted washer and sealing, M5 size | 5 pcs. |
| 3 | Rivet nut, knurled, M5 size | 5 pcs. |
| 4 | Machine screw, M5 size | 5 pcs. |
| 5 | Plastic seal | 1 pc. |
| 6 | Meter seal (for connector) | 1 pc. |
| 7 | End cap (spare) | 1 pc. |
| 8 | Fuse with holder | 1 pc. |
INTERFACE CONNECTORS
| Sensor Connector (male) View from side of pins. |
Signal Cable Connector (female) View from side of sockets. |
| № | WIRE COLOUR | ASSIGNMENT | |
|---|---|---|---|
| 1 | RED | +Vin | |
| 2 | ORANGE | RS-485 (A) | |
| 3 | GRAY | Frequency output (ОC)* | |
| 4 | BLACK | -Vin | |
| 5 | BROWN | RS-485 (B) | |
| 6 | WHITE | Digital input (active low) | |
* Open collector
WARRANTY
TKLS fuel level sensors carry 5-year warranty.Complete warranty terms and conditions are given in the Warranty Card supplied with the sensor and in the User Manual of the sensor.
The issued Warranty Card shall be considered a ground for warranty repair and service of the product. The Warranty Card must be
fully completed by the retailer and customer (dated, signed and stamped). Otherwise it is considered to be invalid.
CERTIFICATES
• E-mark Certificate of conformity (TKLS) E8 10R-04 1452 (2 pages)
• E-mark Certificate of conformity (TKLS-L) E8 10R-04 1739 (2 pages)
• Conformity certificate of Technical regulations of the Customs Union "On the safety of wheeled vehicles" С-RU.АД06.B.00142
• Certificate of conformity ISO 9001:2015 RU19/818419002
